Solid colors
White, black and grey in polyester powder coating for a clean architectural finish.
Product & application reference images · dimensions and finishes to approved samples.
LINEAR CEILING SYSTEMS

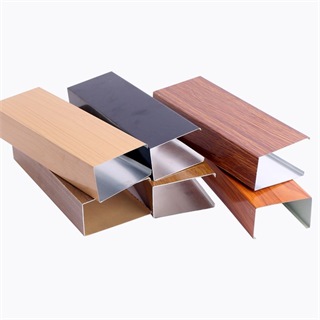

50×100 mm U-Shaped Aluminum Baffle Ceiling (Custom Lengths)
50 mm wide × 100 mm high aluminum ceiling baffles, with custom lengths and 0.4–1.5 mm wall thickness. Made in Foshan with powder, woodgrain or PVDF finishes. OEM/ODM available.
50 × 100 mmBottom width × height
0.4–1.5 mmWall thickness
CustomCut length
50 mm bottom width × 100 mm height · other sizes available to order.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / PRODUCT OVERVIEW & INSTALLATION
50×100 mm. Made to your ceiling plan.
This U-shaped aluminum baffle ceiling uses a 50 mm bottom width and 100 mm profile height to create a clear linear rhythm across commercial interiors. Each profile is continuously roll-formed from aluminum coil, with a choice of 0.4–1.5 mm wall thickness and lengths cut to your project drawings.
The 50×100 mm section is also described as a 5×10 cm aluminum baffle. When specified as 100×50 mm, confirm that the drawing lists height × width. Other widths and heights can be customized. Our Foshan factory supports OEM/ODM production, with color, profile length and carrier layout coordinated for engineering procurement.
Clip-in installation
01
Set the suspension
Position hangers and suspension rods to the approved ceiling layout and coordinate lighting and services.
02
Align the carrier rails
Level and secure the matching clip-in carrier rails. Set the rail layout and spacing to the installation drawings.
03
Clip in the baffles
Engage each U-shaped profile with the carrier clips, keeping the lines and joints aligned. Individual profiles can be removed for maintenance.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Product | 50×100 mm U-shaped aluminum baffle ceiling |
| Section size | 50 mm bottom width × 100 mm profile height |
| Custom sizes | Other widths and heights available to your drawings |
| Wall thickness | 0.4–1.5 mm; selected to suit the project |
| Length | Custom cut lengths to the approved ceiling layout |
| Base alloy | AA1100 / AA3003 aluminum alloy |
| Manufacturing process | Continuous multi-stage roll-forming from aluminum coil |
| Surface treatments | Polyester powder coating (white / black / grey), heat-transfer woodgrain or PVDF fluorocarbon spray coating |
| Color schemes | Solid colors / woodgrain / metallic effects / custom matching |
| Installation | Clip-in carrier rails with suspension hangers; spacing and fixing details to the ceiling plan |
| Manufacturing origin | Foshan, Guangdong, China |
| Customization | OEM / ODM; section size, cut length, color and finish to order |
Dimensions and options supplied by the manufacturer. Confirm cut lengths, spacing, finish samples and the suspension layout with the approved project drawings before production.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.

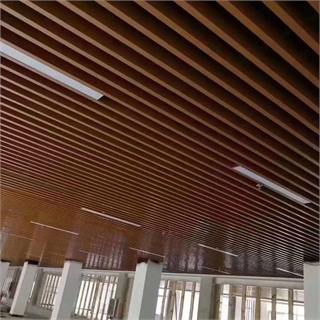

Woodgrain
Heat-transfer woodgrain for warm linear ceilings; grain and tone to an approved sample.
Metallic effects
Silver or champagne effects, with coating system, sheen and appearance confirmed by sample.

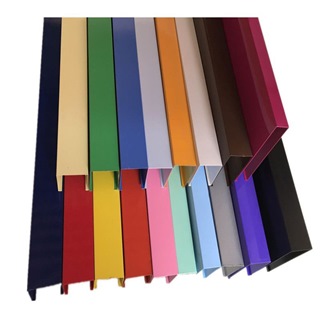

Custom colors
Match your project color reference; final color and finish follow the approved physical sample.
Select polyester powder coating, heat-transfer woodgrain or PVDF fluorocarbon spray coating to suit the project. Metallic and custom effects are confirmed by sample. Screen swatches are illustrative.

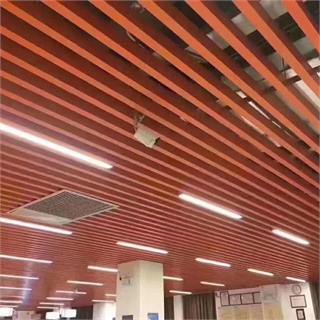

04 / WHERE IT WORKS
Designed for real architectural needs.
Transit interiors

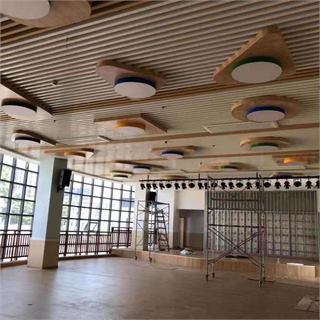

Education spaces
Leisure interiors
Dining spaces
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
EXPLORE OTHER CATEGORIES
More products.
Can I order sizes other than 50×100 mm?
Yes. Other bottom widths and profile heights are available. Send your section drawing, cut lengths and quantity for review and quotation.
Does 100×50 mm mean the same section?
It can, when the dimensions are written as height × width. Our 50×100 mm designation means 50 mm bottom width × 100 mm height. Confirm both dimensions on the approved drawing.
What should I include in a quotation request?
Provide the ceiling plan, area or piece quantity, 50×100 mm section size, wall thickness, cut lengths, spacing, finish, color and delivery destination. Include any carrier or suspension requirements.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
