Powder coating
Standard solid colors, with custom matching to PANTONE or RAL references.

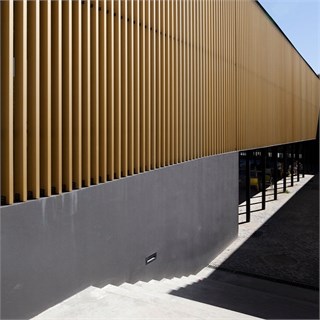

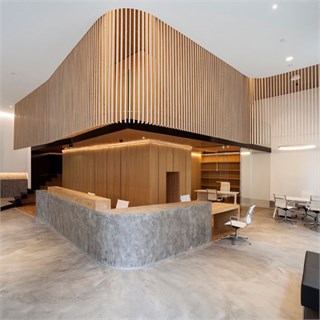

Application reference images · profile geometry, material and finish to approved project drawings.
LINEAR CEILING SYSTEMS
Custom Aluminum Baffle Ceiling
Custom U-shaped aluminum baffle ceilings made to your drawings. Specify width, height, cut length, 0.4–1.5 mm thickness and PANTONE/RAL colors. OEM/ODM in Foshan.
To drawingWidth, height & length
0.4–1.5 mmWall thickness
CustomCut length
Roll-formed U-shaped profiles · made in Foshan · OEM / ODM available.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / PRODUCT OVERVIEW & INSTALLATION
Your section. Your ceiling layout.
Custom aluminum baffle ceilings are manufactured around the section and reflected ceiling plan supplied by your project team. Specify the U-shaped bottom width, height, cut lengths, spacing and finish as one coordinated schedule for procurement.
The roll-formed U-profile range includes 20–300 mm bottom widths, 20–200 mm heights and 0.4–1.5 mm wall thickness in AA1100 or AA3003 aluminum. Powder coating, PVDF fluorocarbon spray coating, polyester coil coating and heat-transfer woodgrain are available. Our Foshan factory supports OEM/ODM orders, with dimensions and colors confirmed by drawings and samples.
Procurement & installation details
01
Define the custom section
Dimension the bottom width, height, wall thickness and visible ends on the section drawing.
02
Schedule lengths and quantities
Identify each cut length and quantity, with joints and orientation shown on the ceiling layout.
03
Coordinate a carrier package
Agree the clip-in carrier, hangers and connection details alongside the profile specification.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Product | Custom Aluminum Baffle Ceiling |
| Profile | Open U-shaped aluminum baffle; continuously roll-formed from coil |
| Alloy | AA1100 / AA3003 aluminum alloy |
| Wall thickness | 0.4–1.5 mm |
| Bottom / opening width | 20–300 mm; customizable |
| Profile height | 20–200 mm; customizable |
| Length | Custom cut lengths to the approved drawings |
| Specified finish | Powder coating / PVDF fluorocarbon coating / polyester coil coating / heat-transfer woodgrain |
| Procurement details | Section drawings, cut-length schedule, quantities, spacing, finish and delivery destination |
| Dimensional tolerance | ±1 mm |
| Installation | Clip-in carrier rails with matched hangers and suspension rods |
| Origin / customization | Foshan, Guangdong, China; OEM / ODM available |
Product ranges supplied by the manufacturer. Confirm the section, cut lengths, finish sample and complete suspension layout in the approved drawings and written quotation.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.
PVDF fluorocarbon coating
Spray-applied PVDF finishes in standard or custom architectural colors.
Polyester coil coating
Roll-coated polyester finishes on aluminum coil, with standard and custom color options.
Heat-transfer woodgrain
Decorative woodgrain finishes; grain pattern and tone to an approved sample.
Standard colors available. PANTONE / RAL custom color matching supported. Woodgrain and stone-effect finishes are optional. Approve a physical sample for the final color, texture and sheen; screen swatches are illustrative.
04 / WHERE IT WORKS
Designed for real architectural needs.
Transit interiors

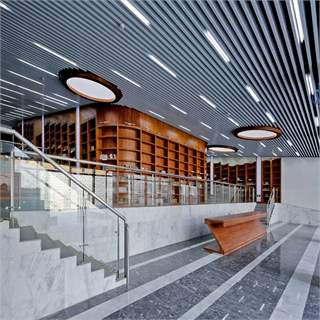

Education spaces
Leisure interiors

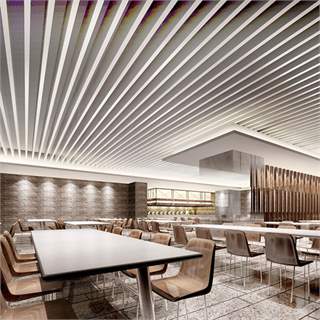

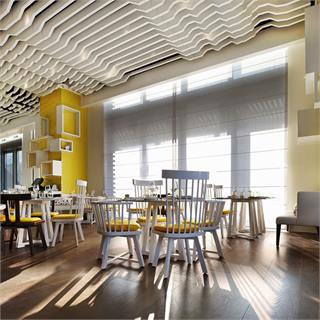

Dining spaces
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
EXPLORE OTHER CATEGORIES
More products.
Which drawings are needed for a custom order?
Send the section drawing, reflected ceiling plan, cut-length schedule, quantities and finish reference. Include suspension requirements and the delivery destination.
Can you support OEM/ODM requirements?
Yes. Profile dimensions, colors and order identification can be coordinated with your drawing package. Samples, quantity, production schedule and commercial terms are agreed in the quotation.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
LET’S BUILD THE DETAILS
Get a project quote.
Discuss your custom aluminum baffle ceiling requirements on WhatsApp, or send the section, ceiling layout, quantities and finish reference for a project quotation.
