Metallic colors
Metallic appearance and sheen selected by physical sample.
Supplied product & application references · dimensions, material and finishes to approved drawings and samples.
FACADE & CLADDING
Laser Cut Aluminum Panels
Custom laser cut aluminum panels for facade screens and architectural features. Decorative patterns, panel dimensions, borders and fixing details to CAD drawings.
CAD patternCustom cutouts
To drawingPanel modules
Review requiredBridges & borders
Custom panel geometry · dimensions, finish and fixings to approved project drawings.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / PRODUCT OVERVIEW
A facade pattern with buildable detail.
Laser cut aluminum panels turn a CAD pattern into a decorative metal screen. For facade screens and architectural partitions, geometric and freeform cutouts can follow a repeated module or continue across several panels, with the pattern aligned to the joints.
Send editable artwork together with the panel dimensions and support layout. Minimum bridges, cutout sizes, solid borders and fixing clearances require fabrication review. Large cutouts affect panel stiffness, and the screen must be coordinated with the backing construction and project structural design.
Panel design & procurement details
01
Develop the pattern artwork
Supply scaled CAD files showing closed cut paths and the intended panel boundaries.
02
Preserve supported connections
Review narrow bridges, isolated shapes, solid margins and fixings before cutting.
03
Approve a pattern sample
Confirm cut edges, finish, scale and visual alignment with a physical sample.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Product | Laser Cut Aluminum Panels |
| Construction | Solid aluminum sheet; panel form and edge details to approved drawings |
| Panel geometry | Solid sheet with custom laser-cut openings; perimeter form to drawing |
| Alloy | AA3003 / AA1100 reference options; alloy and temper to project review |
| Thickness | 1.5–3.0 mm preliminary selection reference; final value to design review |
| Panel dimensions | Custom face dimensions; forming limits and sheet availability to review |
| Drawing requirements | CAD artwork, pattern alignment, bridges, cutout size, borders and fixing zones |
| Edges & reinforcement | Returns, solid borders and stiffeners to approved fabrication drawings |
| Finish options | PVDF, powder coating, woodgrain or other agreed treatment; suitability to sample and exposure review |
| Color & sheen | RAL / PANTONE reference or physical sample; approval before production |
| Fixing design | Panel brackets, subframe, fasteners and design loads coordinated by the project team |
| Inspection | Dimensions, geometry, surface appearance and agreed coating checks |
| Performance documentation | Reports and requirements for the selected complete facade assembly to project specification |
| Order details | Quantity, samples, tooling, lead time, packing and delivery terms confirmed in quotation |
Preliminary selection references. Confirm material, thickness, geometry, finish and the complete support system in approved drawings. Project performance and warranty terms require written confirmation.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.
Solid colors
Powder or PVDF coating route selected for the project exposure.
Woodgrain effects
Decorative woodgrain treatment subject to finish and exposure review.
Custom color references
Provide a RAL / PANTONE reference or physical sample for matching.
Finishes are options across the panel types. Confirm coating route, substrate preparation, exposure requirements, color and sheen with the approved sample and written specification.
04 / WHERE IT WORKS
Architectural applications.

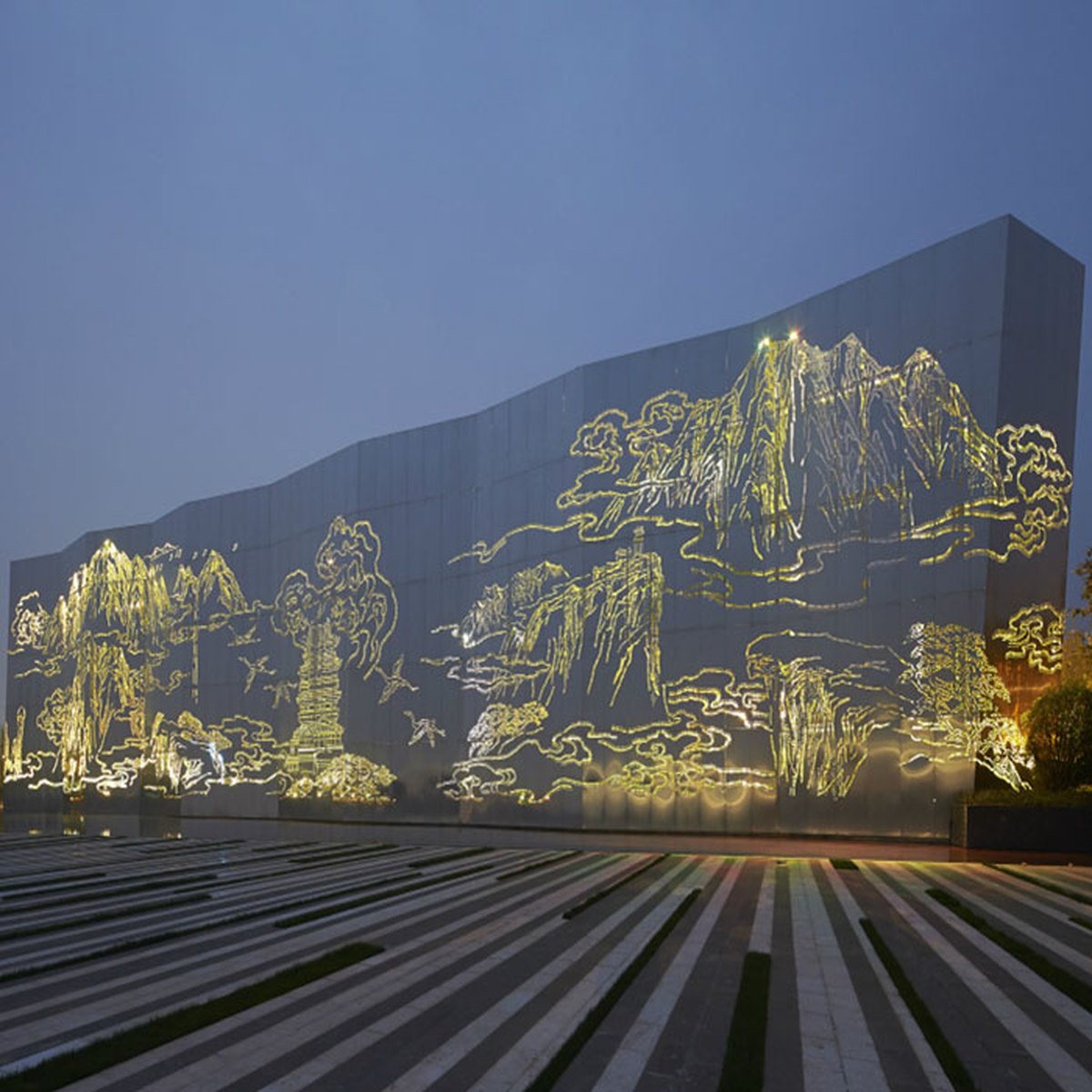

Decorative facade reference

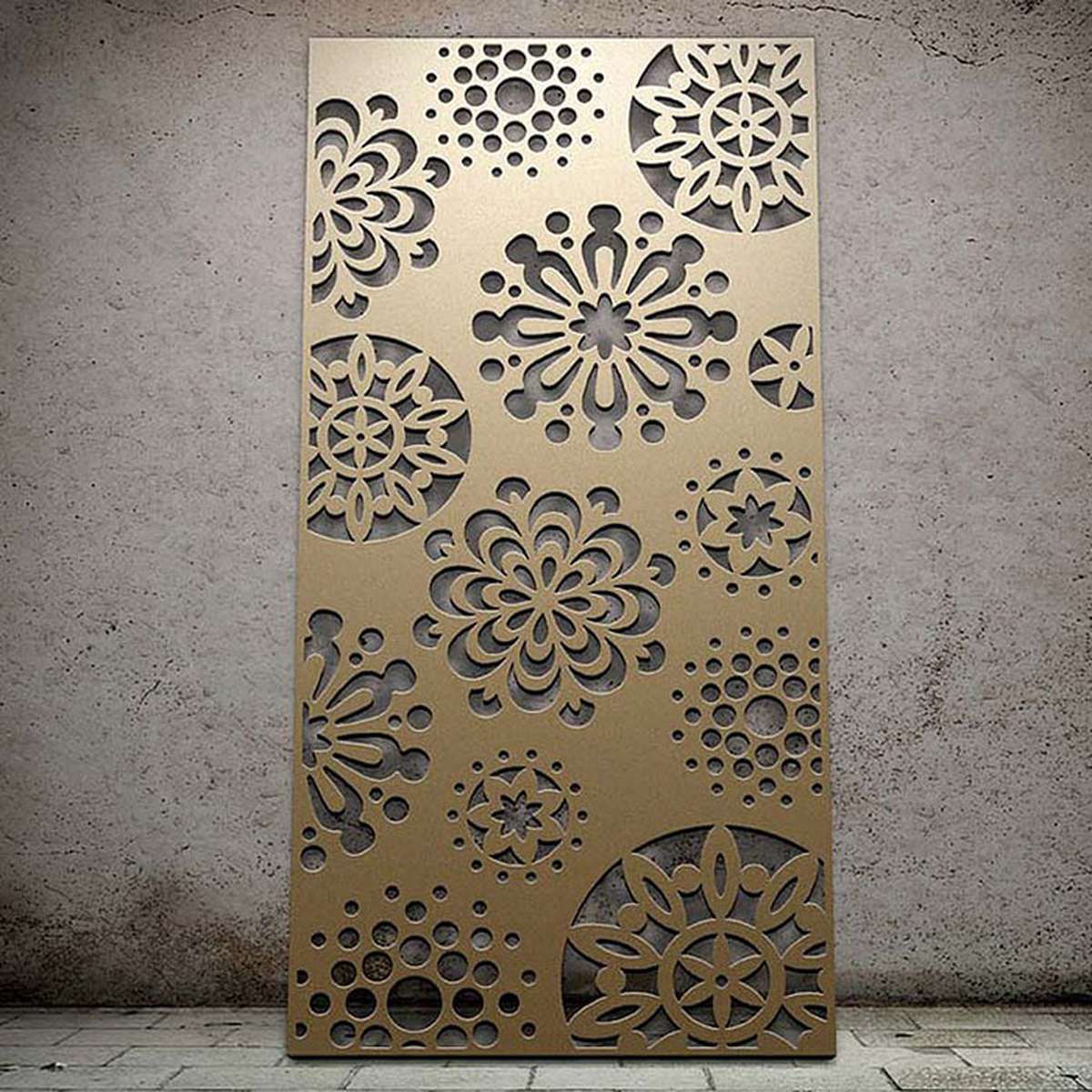

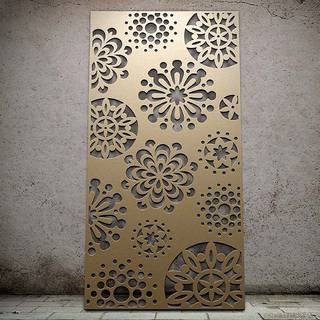

Floral panel reference
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
EXPLORE OTHER CATEGORIES
More products.
How does this differ from perforated panels?
This page focuses on custom artwork and individually shaped cutouts. The perforated facade panel page focuses on repeated hole shapes and a defined pitch schedule.
What artwork should I provide?
Send a scaled editable CAD pattern, panel schedule and elevation showing alignment across joints. Fabrication details and file format are confirmed during drawing review.
Can the panel be used as the outer wall?
A cutout panel is typically an outer screen. The complete facade design must separately address weather protection, support, fire requirements and access.
How much do laser cut aluminum panels cost?
Artwork complexity, cutting length, minimum bridges, panel size, thickness, edge fabrication, finish and quantity affect pricing. Supply the CAD artwork and panel schedule for a quotation.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
LET’S BUILD THE DETAILS
Discuss your facade panels.
Send your drawings, panel schedule, quantities, finish and delivery destination for a laser cut aluminum panels quotation.
