Metallic PVDF colors
Metallic appearance and coating formulation to an approved sample.
Application reference images · colors and coating specifications to approved samples.
LINEAR CEILING SYSTEMS
PVDF Aluminum Baffle Ceiling
PVDF fluorocarbon-coated U-shaped aluminum baffle ceilings, custom made to architectural drawings. 0.4–1.5 mm roll-formed profiles and OEM/ODM supply.
PVDFFluorocarbon coating
0.4–1.5 mmWall thickness
CustomCut length
Roll-formed U-shaped profiles · made in Foshan · OEM / ODM available.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / PRODUCT OVERVIEW & INSTALLATION
Specify the finish with the setting.
PVDF aluminum baffle ceilings use a fluorocarbon spray coating on roll-formed U-shaped aluminum profiles. They are specified where the architectural finish, color and exposure requirements need to be coordinated in one product package.
Select AA1100 or AA3003 aluminum, 0.4–1.5 mm wall thickness, 20–300 mm bottom width and 20–200 mm profile height. Lengths are cut to your drawings. For canopies, semi-open circulation areas or other exposed locations, provide the exposure conditions and design requirements so the coating and suspension specification can be reviewed together.
Procurement & installation details
01
State the exposure conditions
Identify indoor, semi-open or exposed installation conditions in the project brief.
02
Approve the PVDF sample
Coordinate color, sheen and coating specification before production.
03
Review the complete fixing layout
Carrier rails, hangers and connections follow the project drawings and design requirements.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Product | PVDF Aluminum Baffle Ceiling |
| Profile | Open U-shaped aluminum baffle; continuously roll-formed from coil |
| Alloy | AA1100 / AA3003 aluminum alloy |
| Wall thickness | 0.4–1.5 mm |
| Bottom / opening width | 20–300 mm; customizable |
| Profile height | 20–200 mm; customizable |
| Length | Custom cut lengths to the approved drawings |
| Specified finish | PVDF fluorocarbon spray coating; color and coating system to the project specification |
| Procurement details | Exposure conditions, color reference, coating system and suspension requirements |
| Dimensional tolerance | ±1 mm |
| Installation | Clip-in carrier rails with matched hangers and suspension rods |
| Origin / customization | Foshan, Guangdong, China; OEM / ODM available |
Product ranges supplied by the manufacturer. Confirm the section, cut lengths, finish sample and complete suspension layout in the approved drawings and written quotation.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.
Solid PVDF colors
Standard solid colors selected for the architectural scheme.
PANTONE / RAL matching
Provide a custom reference for sample review and color approval.
Decorative alternatives
Woodgrain and stone-effect options follow a separately agreed finish route.
Standard colors available. PANTONE / RAL custom color matching supported. Woodgrain and stone-effect finishes are optional. Approve a physical sample for the final color, texture and sheen; screen swatches are illustrative.
04 / WHERE IT WORKS
Designed for real architectural needs.

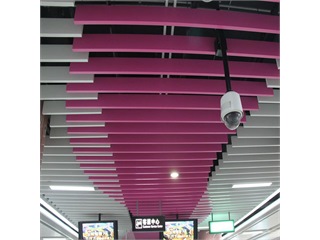

Transit interiors

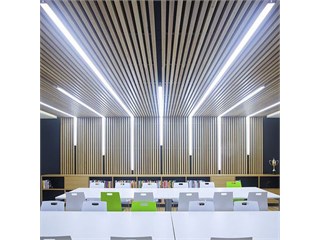

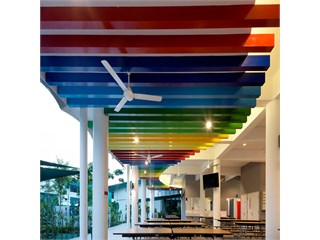

Education spaces
Leisure interiors

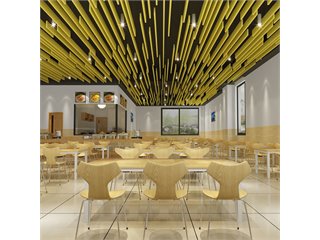

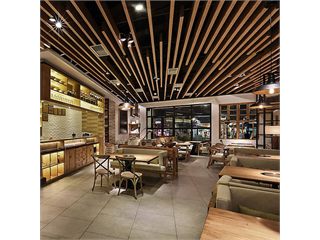

Dining spaces
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
EXPLORE OTHER CATEGORIES
More products.
Can PVDF-coated baffles be used in exposed locations?
The coating and complete fixing system must be reviewed against the project exposure and design requirements. Send the location, drawings and specification for review.
Is a coating warranty included automatically?
Coating system, inspection requirements and any warranty terms are confirmed in the written quotation for the project.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
