Cutting & folded edges
Submit panel dimensions, returns, corner details and fixing zones. Cutting methods, bend radii and tolerances require drawing review.
ARCHITECTURAL ALUMINUM PANELS
Anodized Aluminum Panels
Custom solid aluminum panels with a metallic anodized finish for architectural walls, facades and interior detailing. Select the alloy, panel dimensions and surface appearance around your project.
- Material
- 1060 / 1100 / 3003 aluminum
- Thickness
- 1.5 / 2.0 / 2.5 / 3.0 mm · Custom options
- Finish
- Silver, champagne, bronze and dark metallic tones
Supplied appearance references. Final finish and dimensions follow approved samples and drawings; project ownership and installed specifications are not verified.
Solid Aluminum. Anodized for Architectural Detail.
Formed solid aluminum panels and folded cassettes combine custom geometry with a metallic surface. Coordinate panel divisions, returns, joints and mounting details before production. Review the alloy and finish together on an approved physical sample.
02 / SURFACE & COLOR
Metallic Colors & Surface Options
Anodizing develops an oxide layer on the aluminum surface, creating a metallic appearance without an applied paint film.

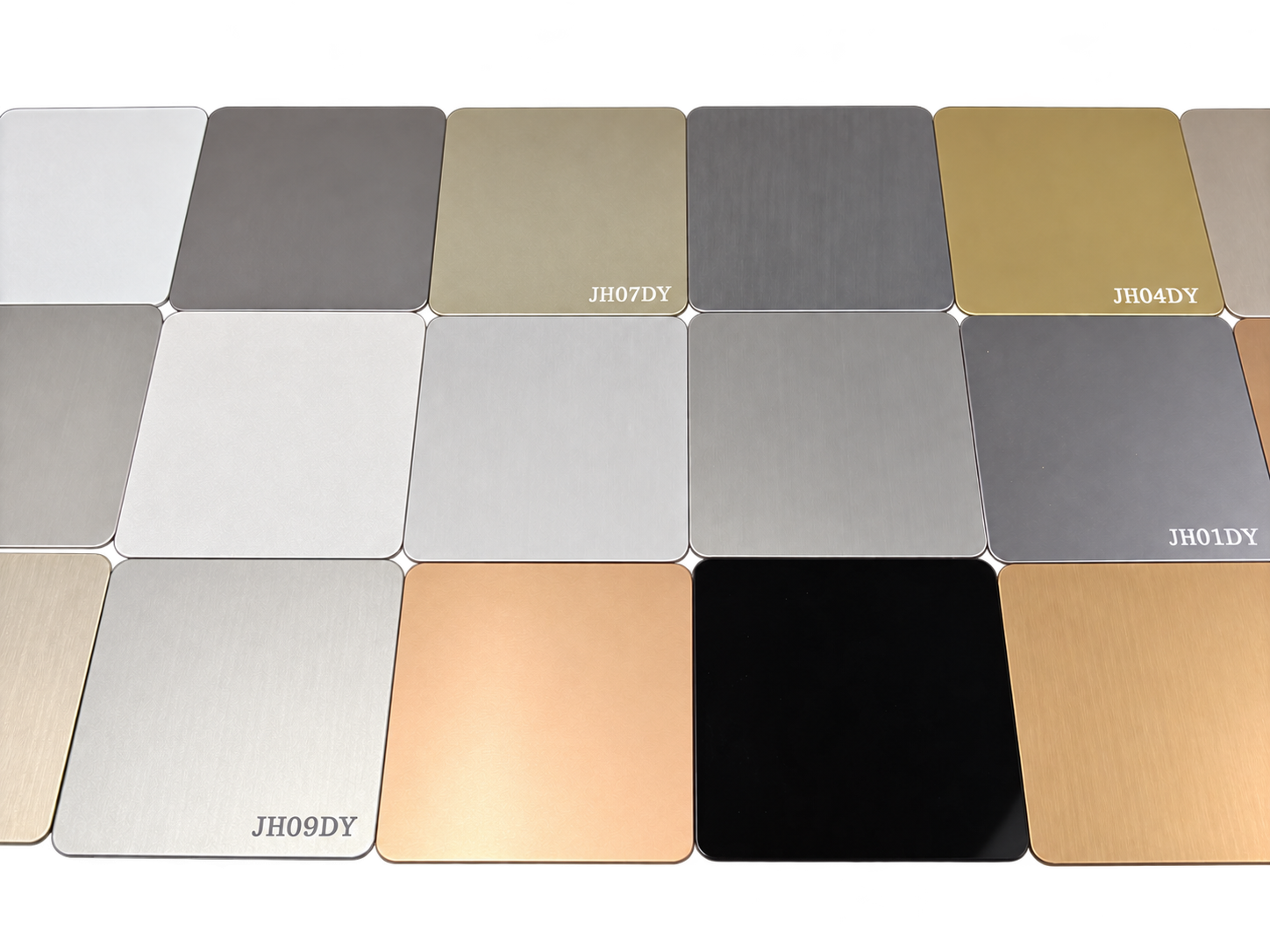

Silver, champagne, bronze & dark metallic tones
Choose natural silver, matte silver, bright silver, light champagne, dark champagne, bronze, dark titanium-tone or brushed silver. Project color matching is available for review.
Approve the alloy, texture, sheen and acceptable color range on physical samples. Material batches, panel orientation and lighting can influence the appearance.
Care & maintenance
Follow the approved finish care instructions. Use gentle cleaning methods appropriate to the surface and avoid abrasive or aggressive chemicals. Confirm any fingerprint-resistant treatment separately.
03 / PROCESS & SPECIFICATIONS
Anodized Aluminum Panel Specifications
Factory-supplied material and process options for architectural panels. Final selection follows approved samples, drawings and written project requirements.
| Item | Specification options |
|---|---|
| Substrate alloys | 1060 and 1100 aluminum; 3003 aluminum alloy. Select the alloy and material batch against the approved anodized appearance sample. |
| Panel thickness | 1.5 / 2.0 / 2.5 / 3.0 mm; non-standard thickness available for project review. |
| Reference sheet sizes | 1,220 × 2,440 mm / 1,500 × 3,000 mm. Custom dimensions, shaped panels and folded forms to approved drawings and processing limits. |
| Anodizing process | Sulfuric-acid anodizing; optional hard anodizing subject to the required appearance, alloy and performance review. These are separately specified process options. |
| Anodic film thickness | Factory-offered nominal options: 8 / 12 / 15 / 20 μm. Specify minimum average and local thickness, exposure and acceptance standard in the order; nominal options are not a declaration of a standards class. |
| Sealing options | High-temperature purified-water sealing or nickel-salt sealing, selected for the finish and agreed quality requirements. |
| Color and texture | Natural, matte or bright silver; light or dark champagne; bronze; dark titanium-tone; brushed silver. Custom metallic colors to an approved physical sample. |
| Fabrication | Custom cutting, bending, punching and welded assemblies, subject to finish compatibility and forming review. Agree fabrication sequence before anodizing. |
| Inspection documentation | Agree the applicable standard and edition, sampling, film thickness, sealing quality, appearance and corrosion-test requirements. Relevant process reports are available on request; scope and applicability to the supplied batch must be confirmed. |
Performance & Quality Acceptance
Film hardness, abrasion resistance, sealing quality, corrosion resistance and weathering must be evaluated using the agreed test method and report. A hardness target of ≥300 HV may be requested for a suitable process, with test load and method specified. Salt-spray duration, acceptance criteria and exterior warranty are confirmed for the selected system.
No universal 10–15 year service-life or zero-color-variation guarantee is implied. Post-anodizing forming can affect the film; approve the bend radius, fabrication sequence and sample appearance before production. Panel and finish results do not establish complete cladding-system performance.
04 / DRAWING-LED FABRICATION
Resolve the geometry before the surface.
Cutting, bending, punching and welded assemblies can be coordinated around the selected alloy and anodized finish. Confirm tooling, forming limits and process sequence on the approved drawing and sample.
Perforation & curved forming
Send hole layouts, open-area requirements and any curvature information. Feasibility for the chosen alloy and finish must be confirmed.
Fabrication & finish sequence
Agree whether forming and machining occur before or after anodizing, including the treatment of exposed edges and visible surfaces.
06 / APPLICATION REFERENCES
Anodized Aluminum Panel Applications

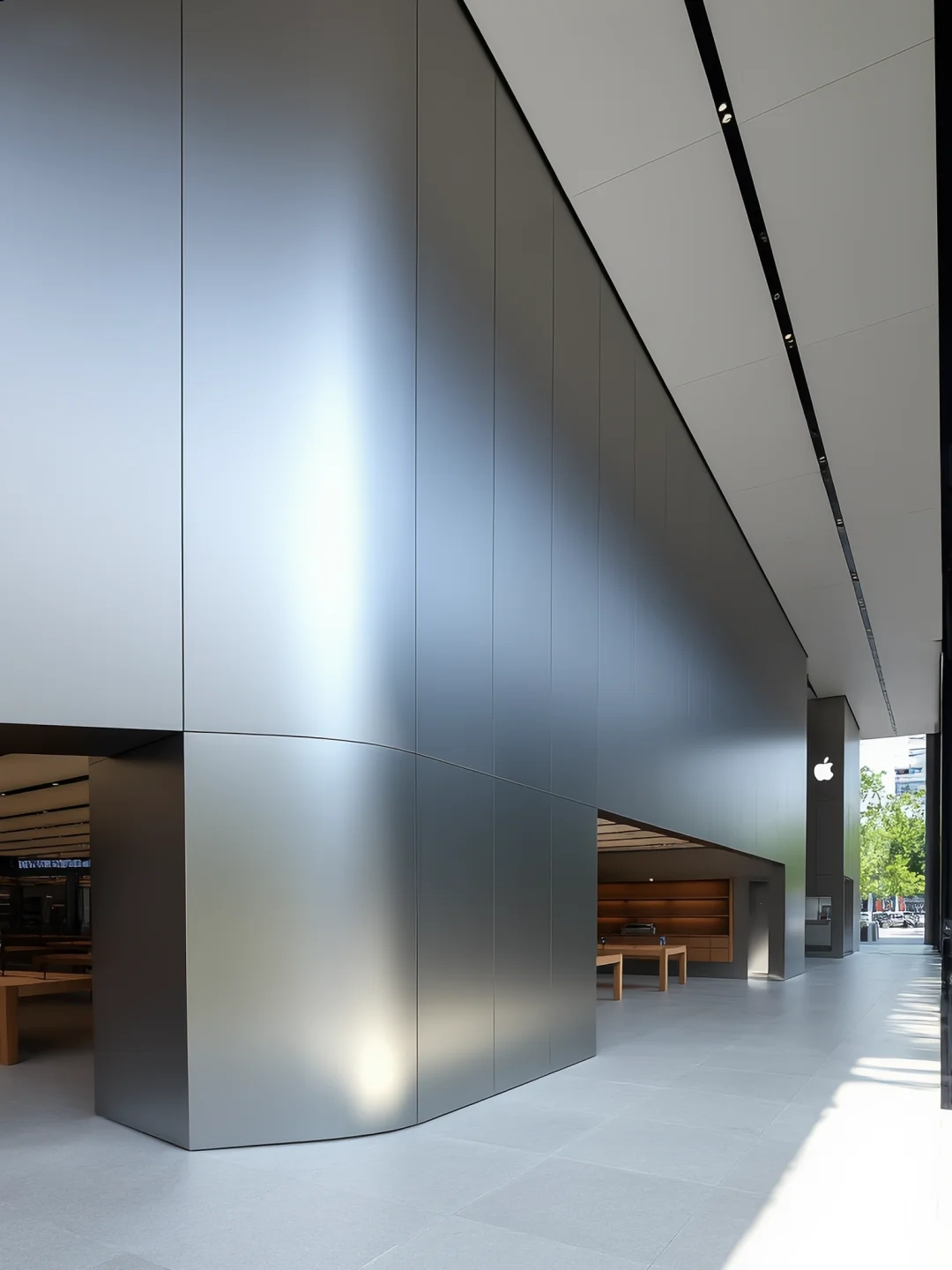

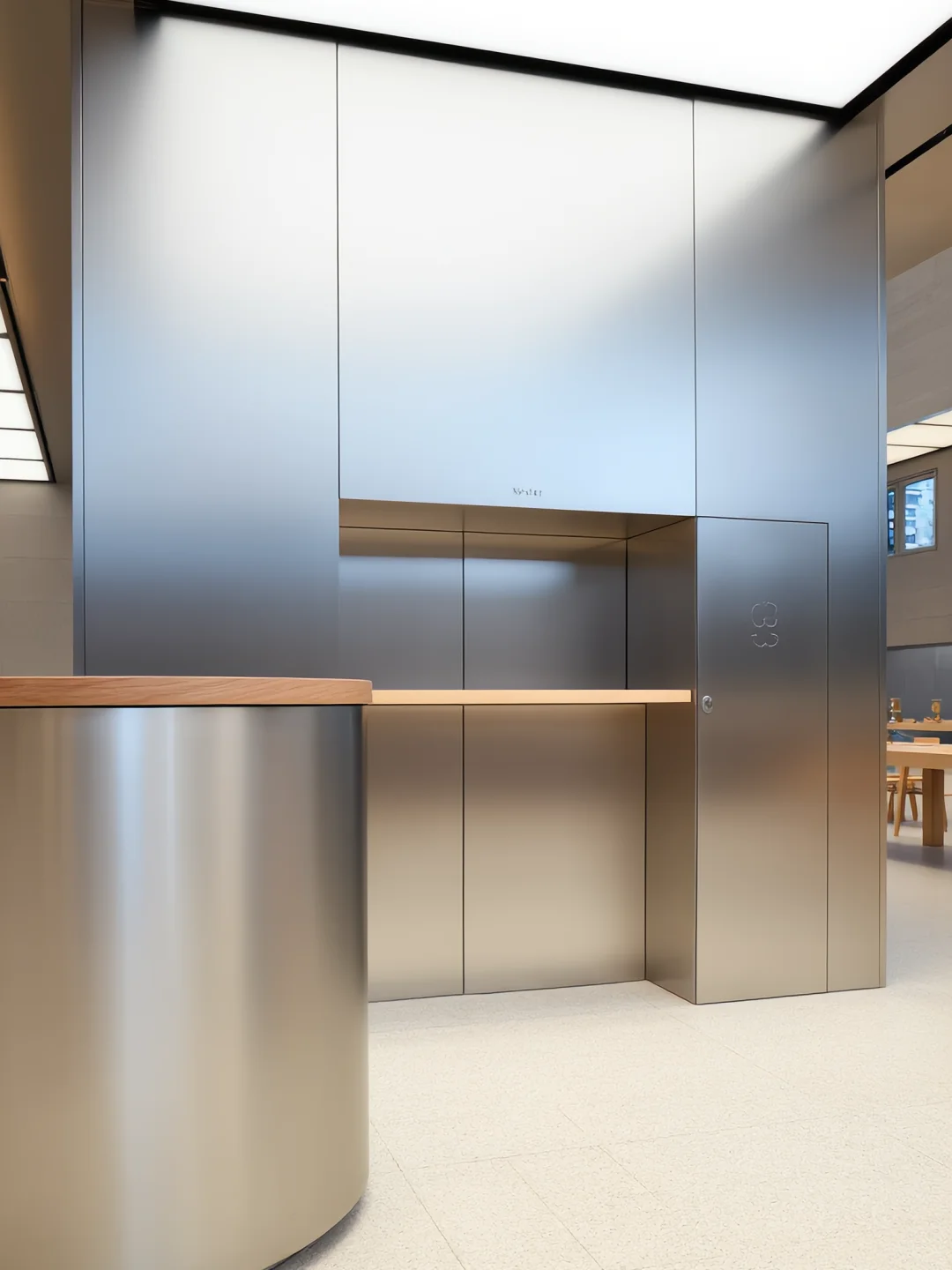

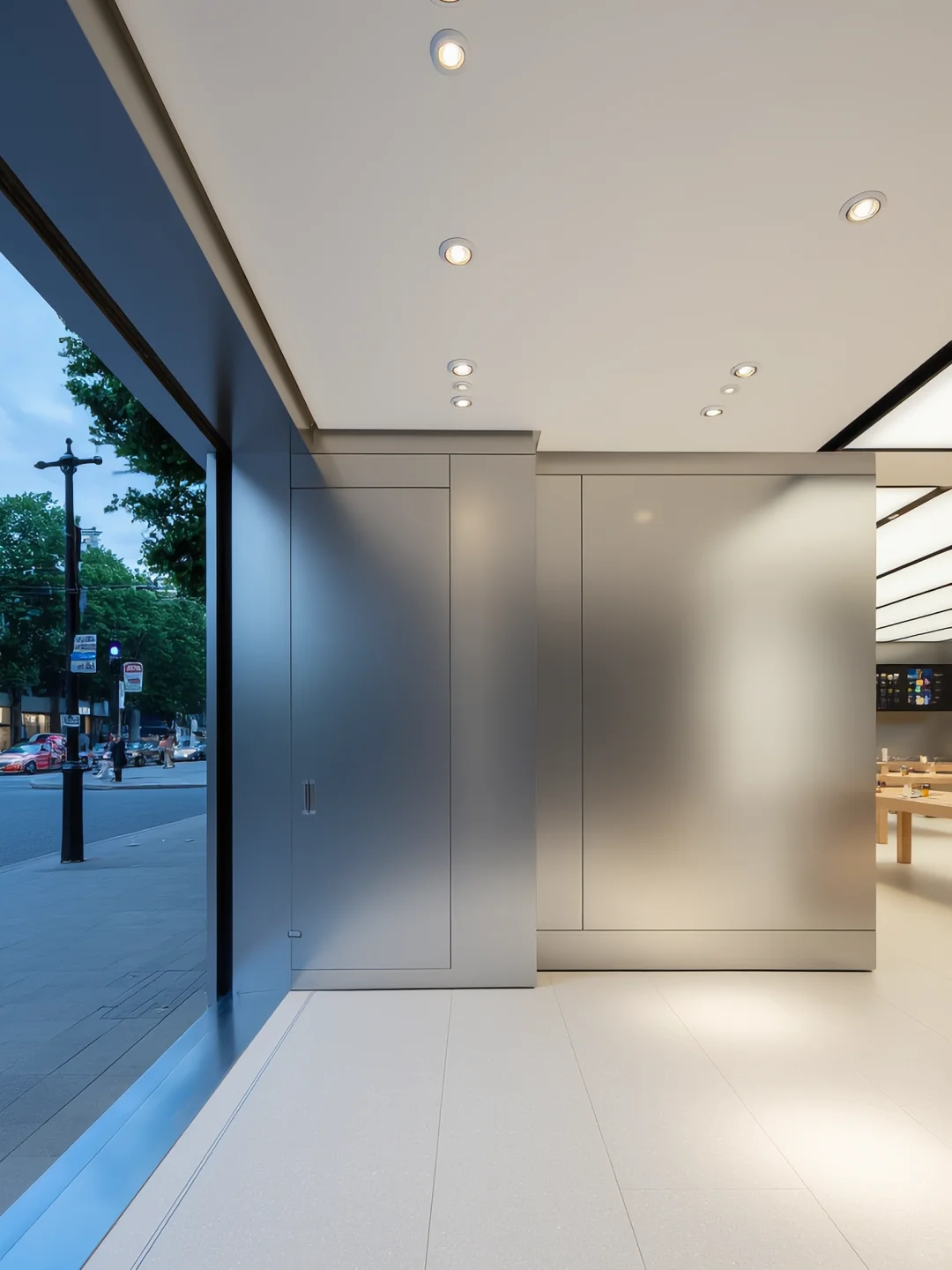

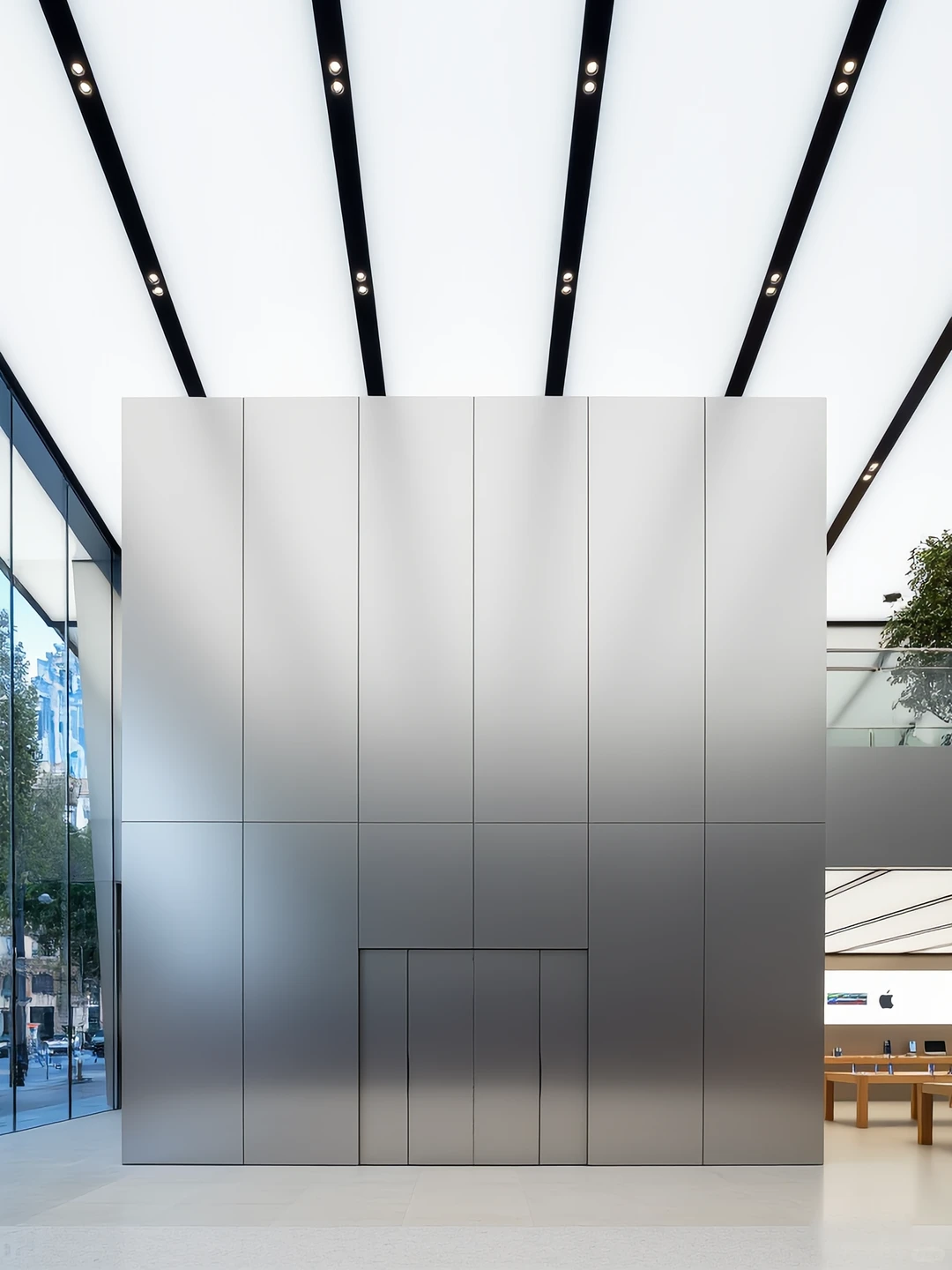

Supplied architectural appearance references for wall cladding, entrances and interior detailing. Project ownership and the installed finish specification have not been verified.
07 / CUSTOM MANUFACTURING
Drawing Support & Project Supply
We support non-standard thicknesses, shaped panels, custom metallic colors and coordinated bending and welding, subject to a fabrication and finish review. Complimentary drawing support and engineering batch-order coordination are available; agree the service scope with our team.
Applications include office facades, hotel lobbies, villa exteriors, retail interiors, elevator surrounds, feature walls and corridor ceilings.
- Send panel drawings, quantities, dimensions and delivery destination.
- Identify the alloy, film thickness, color sample and exposure conditions.
- Request the applicable process test reports and document scope.
- Confirm sample approval, production lead time, packing and warranty in the quotation.
FROM REQUIREMENTS TO DELIVERY
Customization Process
- 01
Send Your Requirements
Share drawings or samples, dimensions, quantities, finish preferences and the delivery destination.
- 02
Review & Quotation
Review the material, geometry, fabrication scope and project requirements, then confirm the quotation.
- 03
Approve Drawings & Samples
Agree section or shop drawings, critical dimensions, colors, surface appearance and sample requirements.
- 04
Production & Inspection
Fabricate and finish the order, with checks against the approved drawings, samples and agreed specification.
- 05
Packing & Delivery
Confirm product identification, protective packing, shipment arrangements and delivery documents.
EXPLORE MORE OPTIONS
More Products
08 / QUESTIONS BEFORE YOU SPECIFY
Make an informed material choice.
How does anodizing differ from PVDF coating?
Anodizing forms an oxide layer on the aluminum surface. PVDF is an applied coating system. Their appearance, fabrication sequence and specification requirements differ. Select the finish for your project using approved samples and the relevant supporting documentation.
Are these panels suitable for exterior use?
Exterior suitability must be confirmed for the selected alloy, anodizing specification, sealing, exposure conditions and panel assembly. Send the project location and specification for review. No service-life or system-performance rating is stated on this page.
How do we confirm the color?
Request a physical sample made with the proposed alloy, pretreatment and anodizing process. Agree color, sheen, surface direction and an acceptable variation range. Digital images are references; production acceptance follows the approved sample.
Can the panels be customized?
Submit drawings for review of cutting, folding, perforation and curved forming. Available processes, bend radii, panel dimensions and finish compatibility are [To be confirmed]. The fabrication and anodizing sequence must be agreed before production.
What affects the price?
The quotation depends on alloy, thickness, finished dimensions, geometry, perforation, surface preparation, anodizing requirements, quantity, inspection, packaging and delivery destination. Minimum order quantity and production lead time are [To be confirmed].
Does an anodized finish establish facade fire performance?
A material finish does not establish the performance of a complete facade system. Panel construction, supports, insulation, membranes, joints and fixings must be assessed as the specified assembly. Applicable project evidence is [To be confirmed].
09 / YOUR PROJECT
Let’s review your facade panels.
Send your requirements for anodized aluminum panels. We will review the proposed geometry, finish and supply details before confirming a quotation.
