FACADE & CLADDING
Double Curved Aluminum Panels
Custom double-curved aluminum panels for facade contractors, builders and architectural projects. Share your 3D model, panel schedule and finish requirements for fabrication review and a project quote.
Custom panel geometry · dimensions, finish and fixings to approved project drawings.
01 / CUSTOM 3D ALUMINUM CLADDING
Double Curved Aluminum Panels for Freeform Facades
A double-curved aluminum panel is a solid aluminum alloy cladding panel with curvature in two principal directions. Dome-like, saddle-shaped and other freeform surfaces allow architectural designs that require more than a simple cylindrical arc.

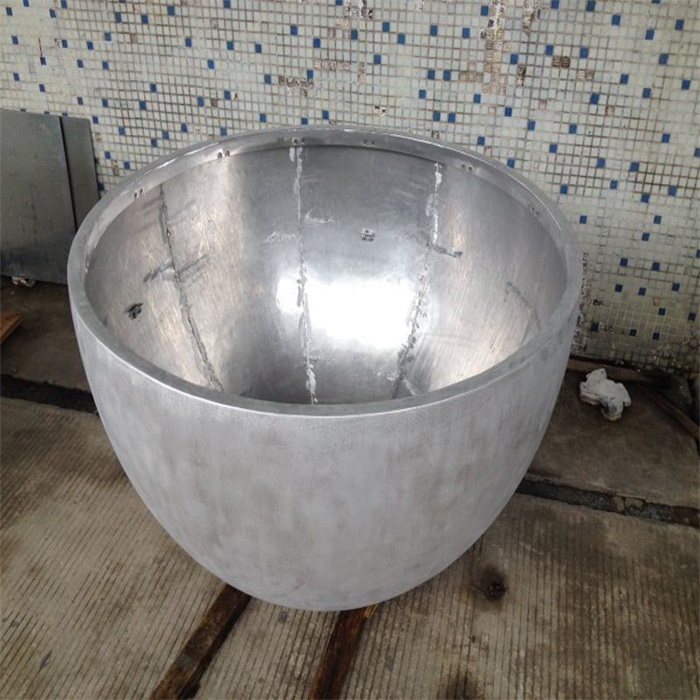

ALUPANELIX reviews 3D surface models, panel segmentation and forming requirements to translate complex designs into factory-fabricated metal cladding. The production route is selected for the alloy, temper, thickness and surface geometry, with custom tooling, trial forming, joining and finishing where required.
Rear stiffeners, mounting points and subframes are coordinated for self-weight, wind loading and thermal movement. Geometry and surface quality are checked against approved drawings and samples before production acceptance.
Single Curved vs Double Curved Aluminum Panels
| Selection | Single curved | Double curved |
|---|---|---|
| Geometry | One principal direction; cylindrical or constant-section arcs | Two principal directions; dome, saddle or freeform surfaces |
| Drawing input | Radius, chord, arc length and straight length | 3D surface model, sections, panel boundaries and reference points |
| Forming review | CNC-controlled roll or stretch bending as appropriate | Custom tooling, moulding or 3D forming as appropriate |
| Cost & programme | Simpler geometry can reduce tooling and fabrication work | Modelling, tooling and trial forming can increase cost and lead time |
Single curved aluminum panels ↗Double curved aluminum panels ↗
Double Curved Panel Specifications & Forming
Download specifications ↓| Material | 3003 / 5005 / 5052 aluminum alloy; temper, formability, welding and finish compatibility to project review. |
|---|---|
| Thickness options | 2.0 / 2.5 / 3.0 / 4.0 / 5.0 mm; selected according to curvature, span, forming process and structural requirements. |
| Panel size reference | Up to 1500 × 4000 mm, subject to 3D geometry, developed blank dimensions, tooling, coating and transport capacity. Larger surfaces can be divided into coordinated segments; joint layout requires approval. |
| Model & fabrication | 3D modelling and surface analysis → panel division and blank/tooling review → CNC-controlled forming, multi-pass forming or mould pressing as appropriate → joining, reinforcement and finishing. A simple rolling route is not suitable for every doubly curved surface. |
| Reinforcement | Rear aluminum stiffeners and connections designed for panel geometry, wind loads, self-weight and thermal movement. Spacing and attachment details follow the approved structural design. |
| Panel weight | Calculated for the selected alloy, thickness, developed panel area, folded returns, stiffeners and fittings. Confirm the assembly weight in the approved panel schedule. |
| Surface treatments | PVDF coating, polyester (PE) coating, powder coating, wood-grain or stone-effect finishes; anodizing subject to alloy, forming and sample review. |
| Color matching | RAL / PANTONE references or customer-supplied samples. Final color, gloss, texture and pattern alignment to physical sample approval. |
| Installation options | Three-dimensionally adjustable hanging connections, angle-bracket dry fixing or close-joint systems, as detailed by the project designer. |
| Performance & inspection | Curvature, reference points, panel boundaries, joints, welds, reinforcement, fixing positions and finish to agreed criteria. Fire classification and other performance claims require applicable product or assembly documentation. |
Manufacturer-supplied reference options. Maximum size and thickness ranges do not establish feasibility for every shape. Final material, forming route, geometry, tolerances and performance follow approved models, drawings, samples and quotation.
03 / SURFACE & COLOR
Surface Treatments for Double Curved Panels
Approve the finish on a representative formed sample.
| Treatment | Selection guidance |
|---|---|
| PVDF coating | For exterior double-curved cladding, including coastal projects with a suitable system. A three-coat/two-bake process can be reviewed where specified. UV, acid-rain and color-retention performance depend on the selected system, pretreatment, exposure and supporting supplier documentation. |
| Polyester (PE) coating | A decorative option with varied colors for interior sculptural panels. Confirm formulation, exposure suitability and written performance terms; no universal service life is assumed. |
| Powder coating | For interior curved ceilings and other applications with an appropriate powder grade. Coordinate forming and coating sequence and inspect representative samples; flexibility and crack resistance require system-specific confirmation. |
| Wood-grain transfer | Wood-look decorative effects for hotels and cultural projects. Review transfer feasibility, grain direction and pattern continuity on a representative double-curved sample; fire and moisture requirements apply to the complete product or assembly. |
| Stone-effect finish | A stone-inspired appearance on lightweight curved metal cladding for shaped columns and facades. Approve texture, pattern placement, joints and exposure suitability. |
| Anodizing | Metallic appearance options, including silver and bronze references, for interior art features. Alloy, temper, welds and forming affect consistency; confirm process, finish and sealing with a sample. |
Select the coating system for the actual exposure and approve a representative formed sample. Confirm performance requirements, maintenance and any warranty against the applicable supplier documentation and written quotation.
Related finishes: PVDF-coated aluminum panels, wood-grain panels and anodized panels.
ARCHITECTURAL APPLICATIONS
Freeform Facades, Domes & Sculptural Ceilings

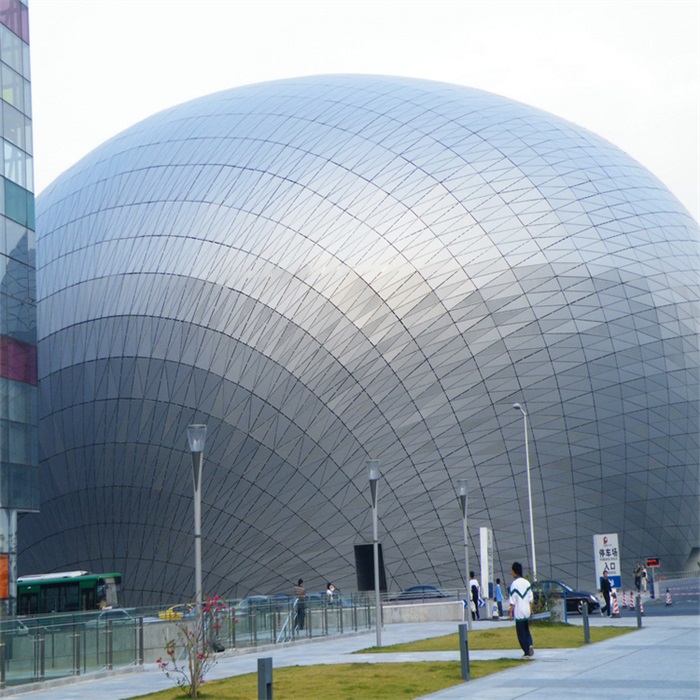

Sports venues
Domes and sculptural exterior cladding, coordinated with the roof or facade support structure.
Theaters & concert halls
Complex outer shells and expressive entrance features fabricated from an approved 3D surface model.
Museums & cultural centers

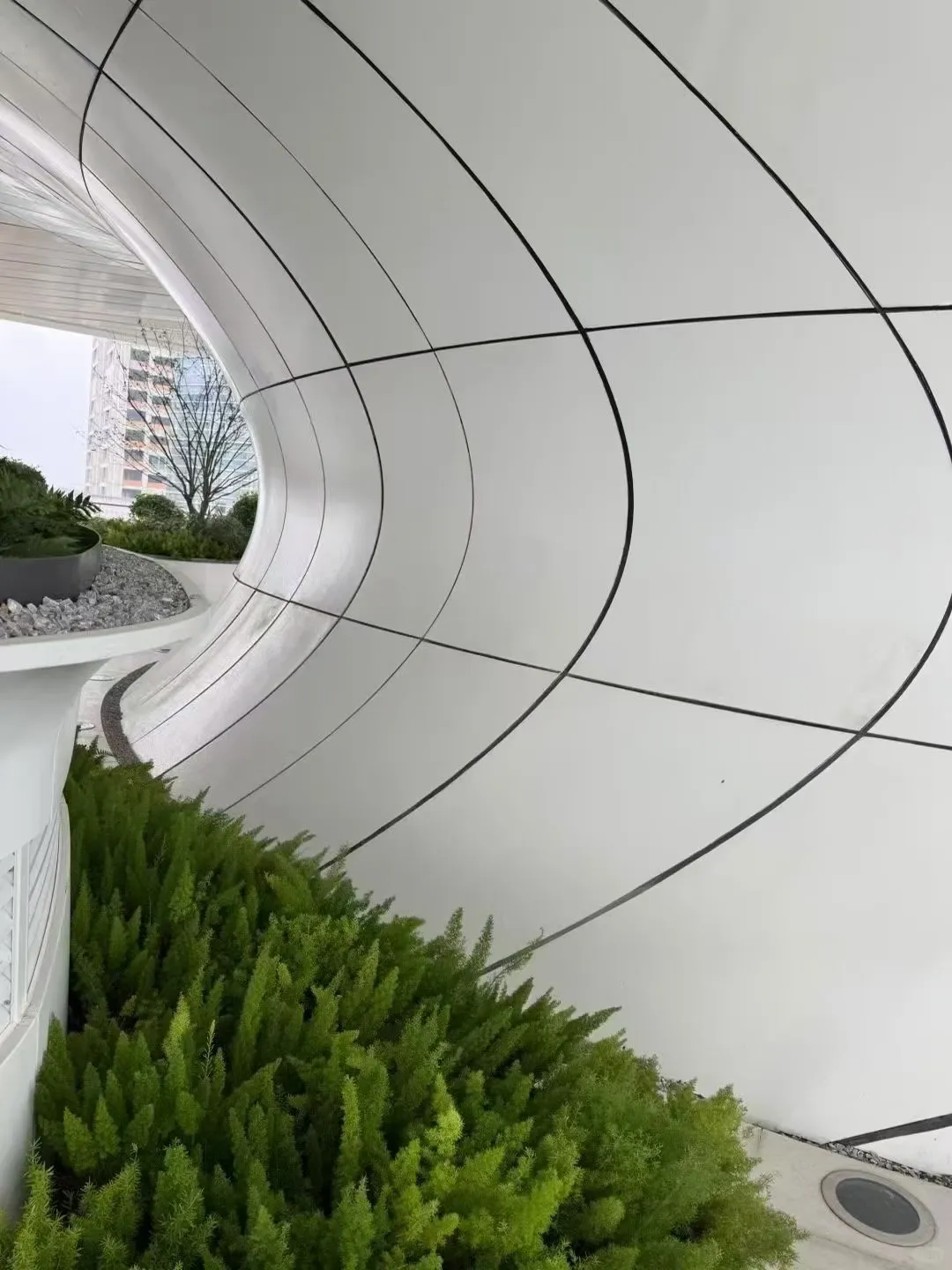

Freeform curtain wall features and architectural metal surfaces with coordinated panel joints.

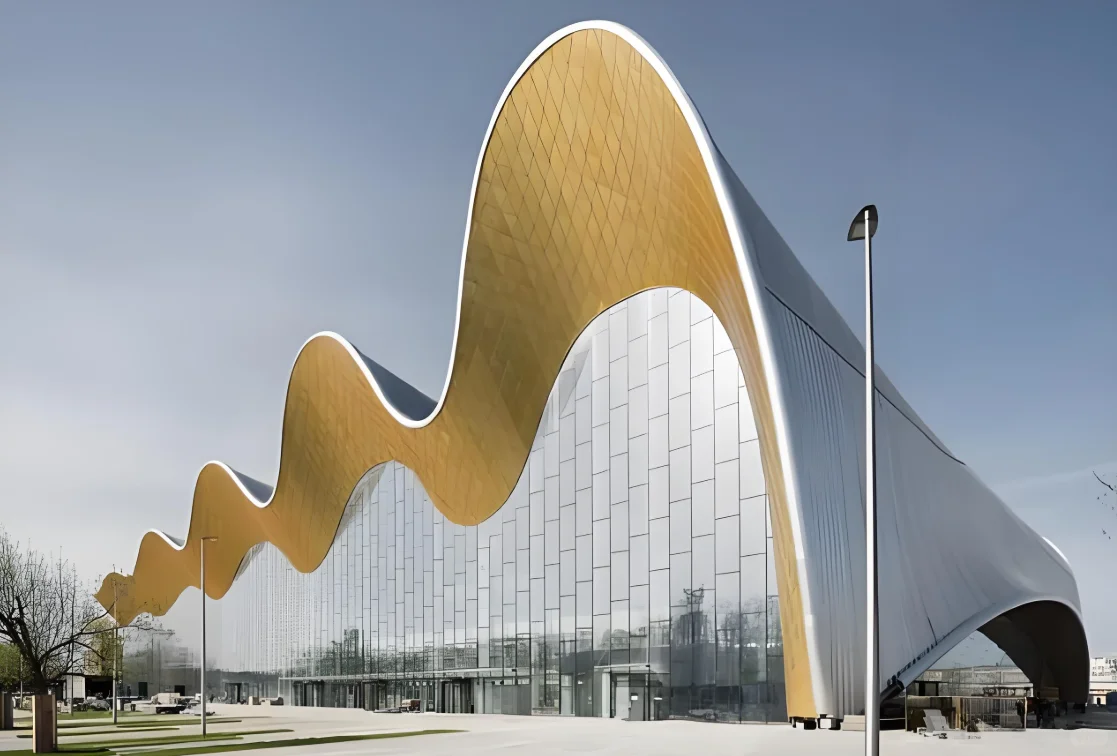

Airport terminals
Wave-like roof cladding and ceiling surfaces, subject to roofing, drainage, acoustic and service requirements where applicable.

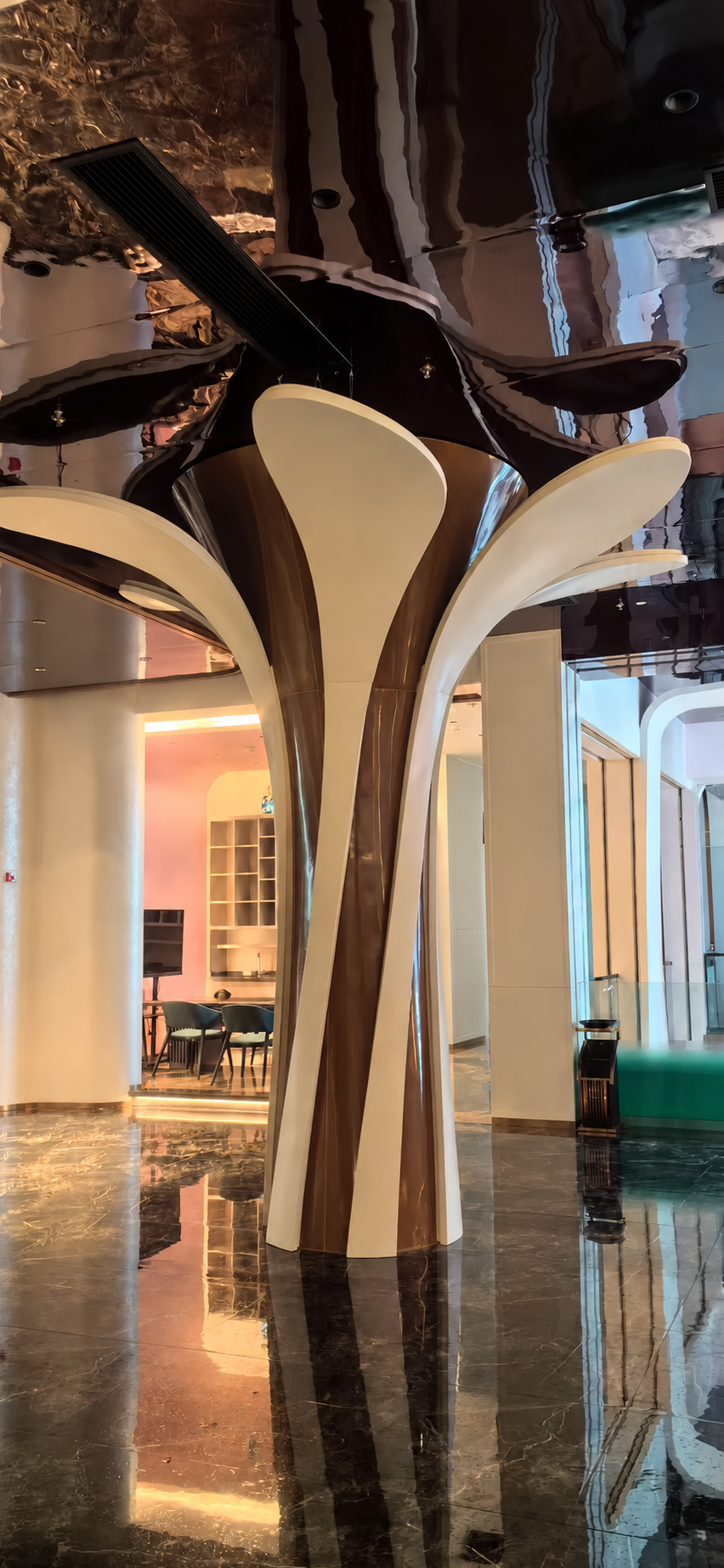

Hotel lobbies
Suspended curved ceilings and sculptural interior elements with engineered hangers and maintenance access.
Commercial atriums
Landmark overhead features and multi-directional curved wall details.
Tourism & visitor centers
Freeform building shells and entrance canopies with finishes selected for actual site exposure.
Compare single-curved aluminum panels for surfaces that need curvature in one principal direction, or solid aluminum panels for flat and folded cladding zones. Confirm interfaces, supports and fixing access across the complete design.
05 / FROM DRAWING TO DELIVERY
Ordering & Production Process
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
EXPLORE MORE OPTIONS
More Products
What is a double-curved aluminum panel?
It is a formed solid aluminum panel with curvature in two principal directions, such as a dome or saddle surface. It is also described as double-curvature aluminum cladding or a 3D curved facade panel.
How does it differ from a single curved panel?
A single-curved panel bends in one principal direction, such as a cylindrical segment. Double-curved surfaces require a 3D geometry review and may need more complex tooling, forming and inspection.
Can every 1500 × 4000 mm surface be made as one panel?
No. This is a panel-size reference, not a guarantee for every alloy, thickness or curvature. Developed blank size, forming strain, tooling, finishing and transport determine feasibility. Larger or more complex surfaces may need approved segmentation.
Which files are needed for custom fabrication?
Provide a 3D surface model, dimensioned sections, panel divisions, reference points, joint details, thickness, alloy, quantities and finish brief. Confirm the accepted model format with the team before sending the production package.
Does the panel have an A2 fire classification?
A2 or any other classification must be supported by the applicable test standard and report for the supplied product or assembly. The aluminum substrate alone does not establish the classification of a coated facade or ceiling system.
How are tooling cost and lead time determined?
Surface complexity, alloy temper, panel count, moulds, trial forming, welds, reinforcement, finishing and inspection determine the quotation and programme. Approval of samples and geometry is coordinated before production.
How do I choose an exterior finish?
Review the coating system against UV, coastal exposure, color and maintenance requirements. PVDF and other finishes require sample approval and supporting performance documentation. Any long-term color-retention target or warranty must be confirmed in writing.
